Name: DJI Zenmuse P1 Sensor
Brand: DJI
Price: 11990.0 AUD
Availability: InStock

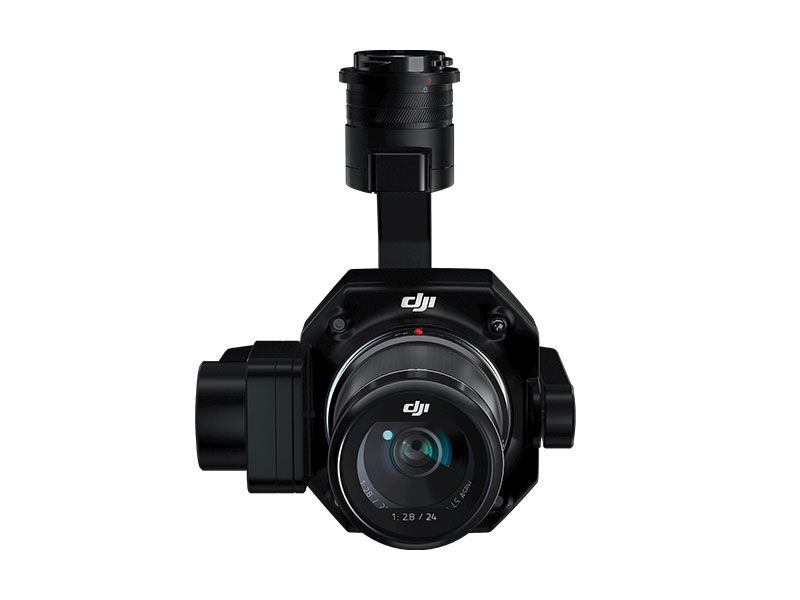

DJI Zenmuse P1 Sensor

Product Details

Brand: DJI

The Zenmuse P1 has set a new benchmark for Aerial Surveying

With the introduction of Full-frame photogrammetry to the DJI Matrice 300 System. This new all in one gimbal solution integrates a interchangeable high-end 45 MP full-frame sensor on a redesigned 3-axis stabilised gimbal. This allows pilots to quickly change the focal length depending on the detail and zoom required. The engineers have designed the P1 with efficiency and accuracy in mind to add to the incredibly flexible M300 eco-system.

What is the resolution and format of the photos taken by the DJI P1?

The P1 takes either JPEG, DNG or JPEG + DNG with a resolution of 8192 x 5460, giving its approximately 45 MP.

Quick facts you need to know about the Zenmuse P1:

▪ Global Mechanical Shutter with a minimum shutter speed of 1//2000 seconds.

▪ TimeSync 2.0 Synchronisation at the microsecond level.

▪ 3cm Horizontal + 5cm Vertically is the accuracy without ground control points.

▪ 3 km² covered in a single flight, providing the efficiency for Photogrammetry missions.

Extraordinary and Remarkable

Efficiency & Remarkable

The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km² in a single flight.

Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.

Robust & Reliable

Versatility

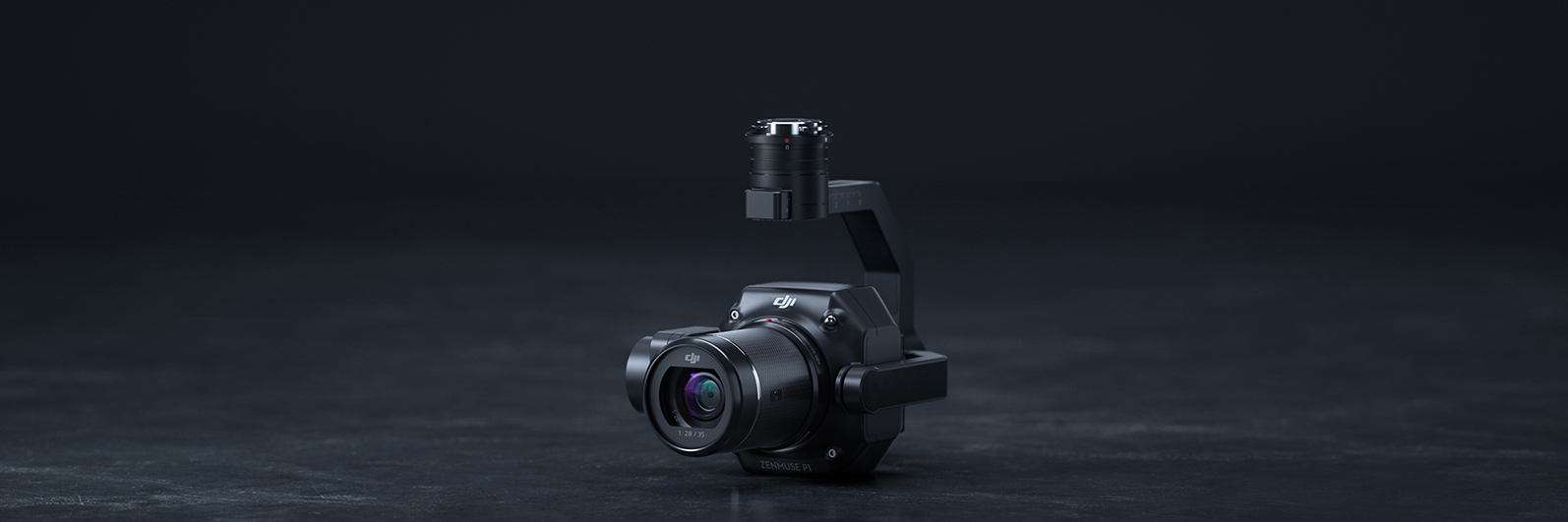

Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24 /35 /50 mm lenses and the Smart Oblique Capture feature.

With the DL Mount, you can enjoy the large range of high quality glass DJI has to offer with the Zenmuse P1.

More Than Just a Camera

Smart & Smarter

Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed.

Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20% to 50%.

New Data Management enables the following:

- Mission result files are automatically associated with the Mission Name and Mission Time.

- A centralised storage location for photos, GNSS data and TimeStamps.MRK files.

- The image metadata contains the cameras intrinsic and extrinsic parameters and the status of RTK.

Bond Your Photos

Mission Possible

Detailed Modelling Mission
Acquire ultra-high resolution image data of vertical or slanted surfaces from a safe distance that faithfully recreates fine textures, structures, and features, for detailed reconstructions, geological surveys, heritage site conservation, hydraulic engineering, and more.

2D Orthomosaic Mission
Generate orthomosaics without GCPs using the P1, perfect for medium to large-area operations.

3D Oblique Mission
Effortlessly acquire oblique images from multiple angles that meet 3D modeling requirements across industries such as urban planning and centimeter-level accurate cadastral surveys to serve 3D reality models and smart city planning.

Less Paperwork

Reporting Got Easier

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.

Gather geographic information of large areas in real-time using DJI Terra so that teams can make crucial decisions quickly on site.
